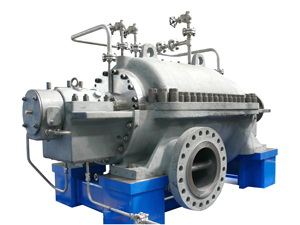

MHH Axially split multistage pump High pressure multi-stage pump

Description
The TORISHIMA MHH is a high pressure, middle capacity pump for high pressure pumps for RO desalination and water transmission pumps.
The diffuser guides flow from impeller discharge to next impeller suction eye. The axial force is compensated by a hydraulic balancing device. The axially split design gives easy maintenance of rotating equipment without disturbing the main pipework.
The pump has a wide range of materials from carbon steel to stainless steel (austenitic, duplex stainless steel) depending on handling liquid and site condition.

High pressure multi-stage centrifugal pumps having various
designs to meet the requirements in handling
feed water and condensate in power stations,
R.O. sea water desalination plant, etc.

Technical Data
Total Head up to 800m / 2,600ft
Capacity 250 to 800m³/h / 1,100 to 3,520USgpm
Suction pressure up to 1MPa / 145psi
Discharge pressure up to 10MPa / 1,450psi

General specifications ranges                                       Total head up to 4,200m (13,800ft) Capacity up to 4,900m 3 /hr (21,580U.S.gpm) Temperature up to 230deg.C (446deg.F) Size DN40 to 450mm (DN1 to 18in)

>>>>>>DOWNLOAD KATALOG TORISHIMA MHH<<<
